Specifications
PDF(1)
PDF(2)
| TYPE | DESCRIPTION |
| Mfr | IR (Infineon Technologies) |
| Series | XC8xx |
| Package | Tape & Reel (TR) |
| Product Status | OBSOLETE |

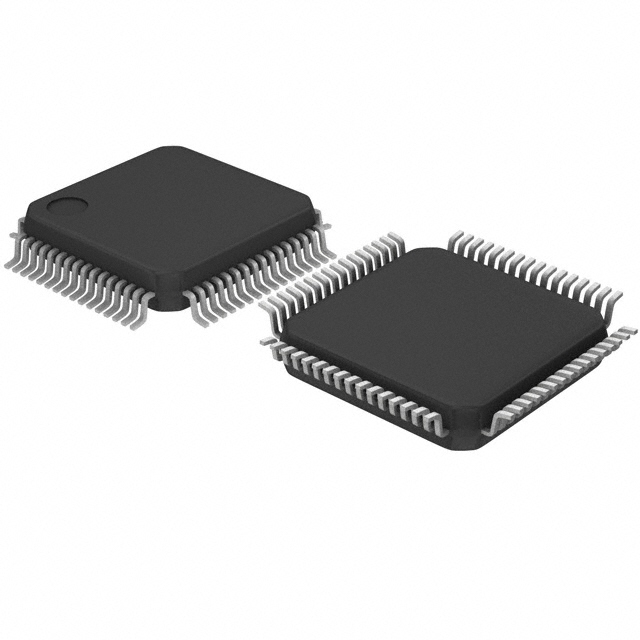

| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 24MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 1.75K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| Core Processor | XC800 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | SSI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | PG-TQFP-64 |
| Number of I/O | 48 |
| DigiKey Programmable | Not Verified |
